Does drag affect lift?
Drag is a force and is therefore a vector quantity having both a magnitude and a direction. Drag acts in a direction that is opposite to the motion of the aircraft. Lift acts perpendicular to the motion. Many of the factors also affect lift but there are some factors that are unique to aircraft drag.
How does drag affect an aerofoil?
The effect is called induced drag or drag due to lift. The flow around the wing tips of a finite wing create an “induced” angle of attack on the wing near the tips. The wing model to determine angle of attack effects is long and thin, and may span the entire tunnel to produce a “two-dimensional” airfoil.
How is lift created with an airfoil?
An airfoil generates lift by exerting a downward force on the air as it flows past. According to Newton’s third law, the air must exert an equal and opposite (upward) force on the airfoil, which is lift. The airflow changes direction as it passes the airfoil and follows a path that is curved downward.
What factors affect lift and drag?
Lift and drag also vary directly with the density of the air. Density is affected by several factors: pressure, temperature, and humidity. At an altitude of 18,000 feet, the density of the air has one-half the density of air at sea level.
Why does lift cause drag?
Induced Drag is an inevitable consequence of lift and is produced by the passage of an aerofoil (e.g. wing or tailplane) through the air. Air flowing over the top of a wing tends to flow inwards because the decreased pressure over the top surface is less than the pressure outside the wing tip.

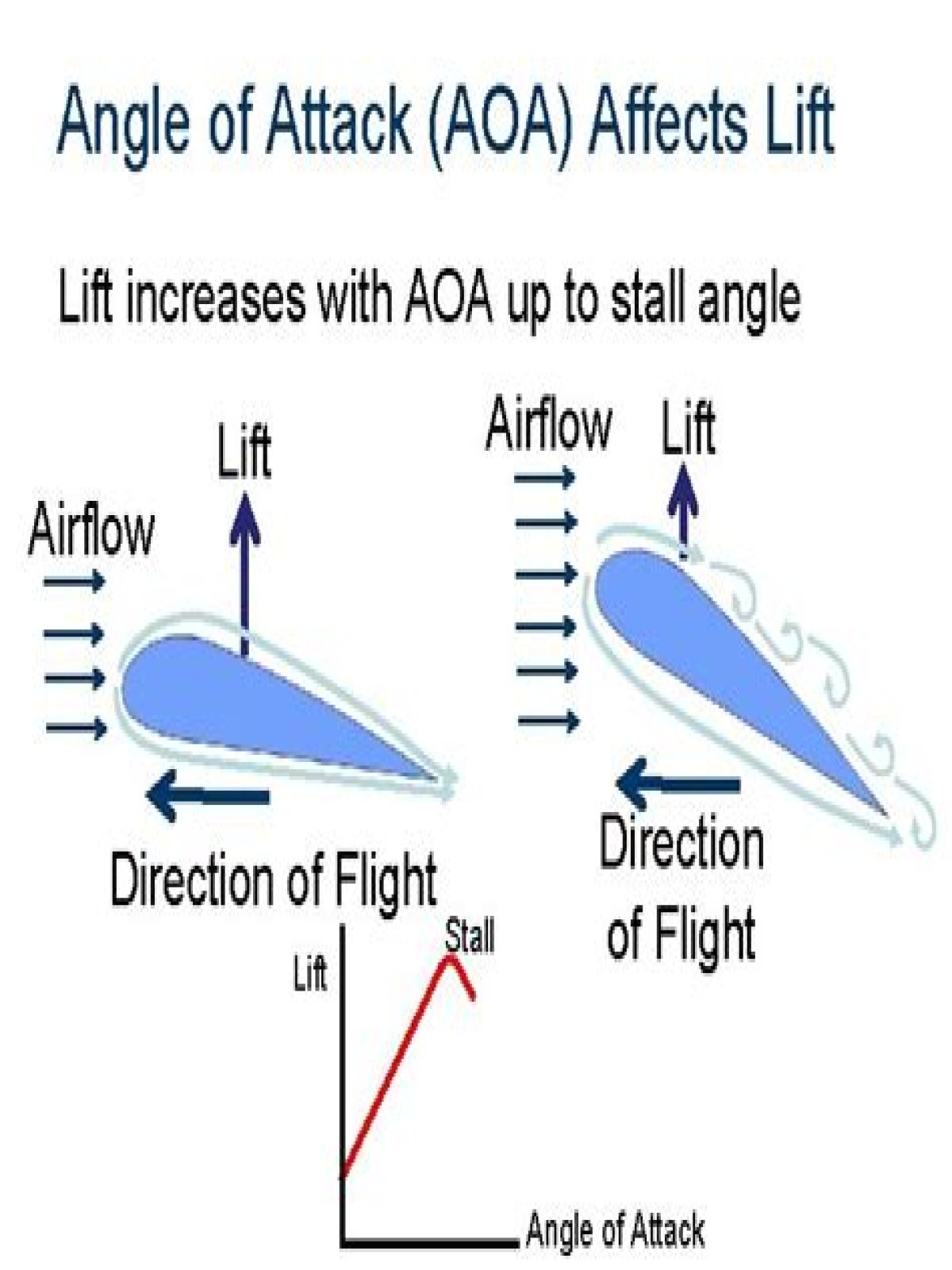

Why does stall increase drag?
This angle varies very little in response to the cross section of the (clean) aerofoil and is typically around 15°. At the stall, the airflow across the upper cambered surface ceases to flow smoothly and in contact with the upper surface and becomes turbulent, thus greatly reducing lift and increasing drag.
How do you calculate lift and drag?
The lift/drag ratio is used to express the relation between lift and drag and is determined by dividing the lift coefficient by the drag coefficient, CL/CD. A ratio of L/D indicates airfoil efficiency. Aircraft with higher L/D ratios are more efficient than those with lower L/D ratios.
How is lift coefficient of airfoil calculated?
The lift coefficient Cl is equal to the lift L divided by the quantity: density r times half the velocity V squared times the wing area A.
How does an airfoil really work?
airfoil, also spelled Aerofoil, shaped surface, such as an airplane wing, tail, or propeller blade, that produces lift and drag when moved through the air. An airfoil produces a lifting force that acts at right angles to the airstream and a dragging force that acts in the same direction as the airstream.
Which of the following would change the lift produced by an airfoil?
The size and shape of the wing, the angle at which it meets the oncoming air, the speed at which it moves through the air, even the density of the air, all affect the amount of lift a wing creates.
What are the five factors that affect lift production by an airfoil?
The lift of a wing may be increased by the angle of attack, airfoil shape, outline shape, airspeed, wing size, and air density. The angle of attack is the angle formed by the airfoil chord and relative wind.
