How do I set RGB color in MATLAB?

How do I set RGB color in MATLAB?

One can specify colors using a vector that gives the RGB triple where in MATLAB, each of the three values are numbers from 0 to 1. Usually RGB colors have values from 0 to 255. You can use those numbers and divide the vector by 255 to use within MATLAB. Thus knowing the MATLAB RGB triples for the colors can be useful.

How do you change the colormap in MATLAB?

Open the Colormap Editor. Change the colormap to Hot using the drop-down menu. Adjust the colormap by clicking and dragging the red section to the right. The new colormap provides more detail near the center of the image.

What is MATLAB default colormap?

As of MATLAB R2014b the default colormap has changed from Jet to Parula. Jet is a rainbow colormap. This type of colormap does not contain magnitude messages. This means that unless you have a colorbar or know the order of colors it is difficult to tell which color represents a higher or lower value than another color.

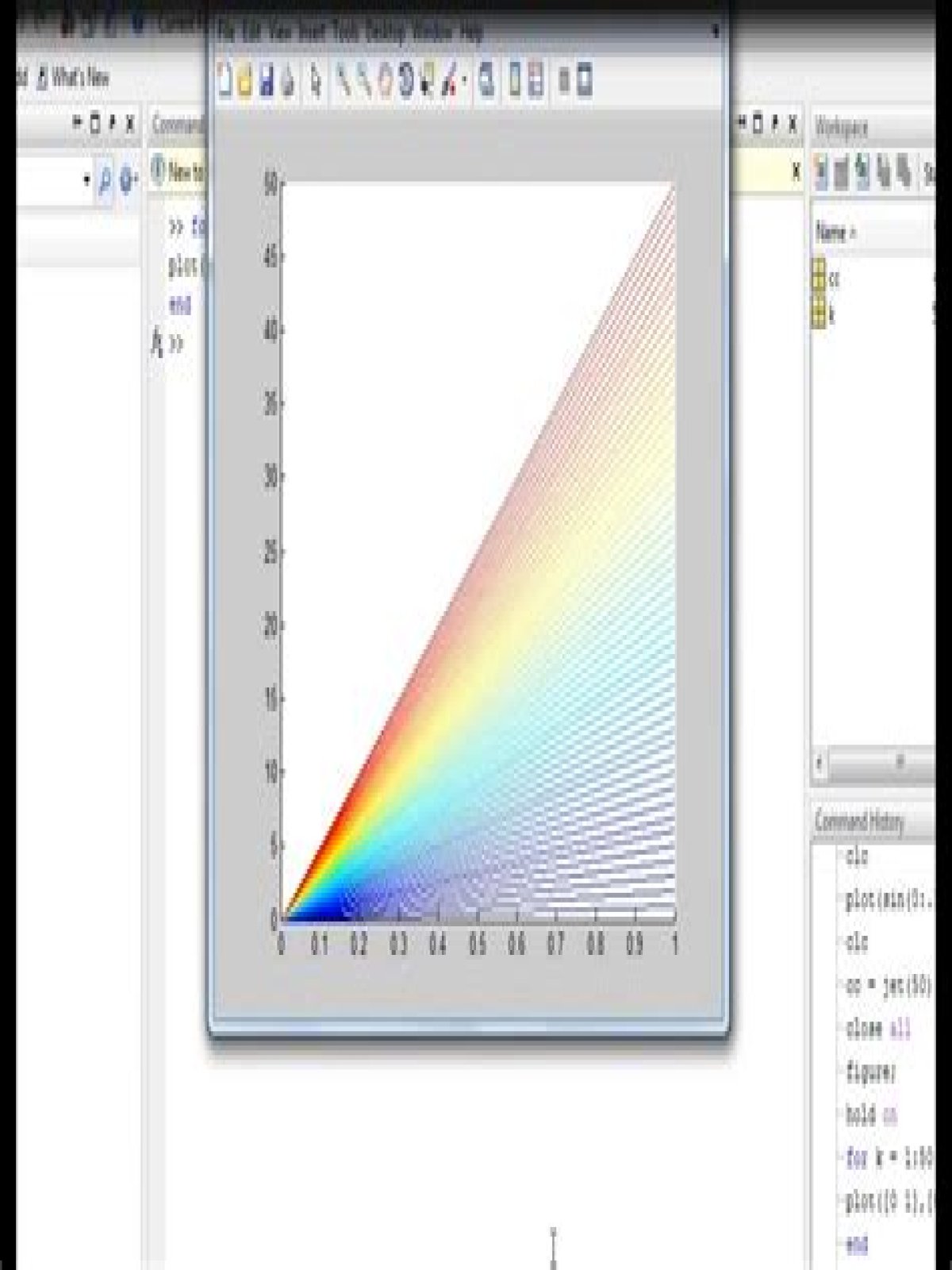

What is Jet Colormap?

c = jet returns the jet colormap as a three-column array with the same number of rows as the colormap for the current figure. Each row in the array contains the red, green, and blue intensities for a specific color. The intensities are in the range [0,1], and the color scheme looks like this image.

How do I choose a color in Matlab?

c = uisetcolor( RGB ) specifies the default color selection as an RGB triplet. c = uisetcolor( obj ) sets the default color selection to be the color of an object (such as a Figure ). If you select a different color in the color picker, the color of the object changes to the new color after you click OK.

What is Matlab RGB?

RGB (Truecolor) Images An RGB image, sometimes referred to as a truecolor image, is stored as an m-by-n-by-3 data array that defines red, green, and blue color components for each individual pixel. RGB images do not use a palette. An RGB MATLAB® array can be of class double , uint8 , or uint16 .

How do I set the default colormap in Matlab?

In your case, you would do the following: set(0,’DefaultFigureColormap’,cmap); In general, the property name you have to set will be the word ‘Default’ followed by the handle object name (i.e. ‘Figure’ , ‘Line’ , ‘Surface’ , etc.) followed by the property name you are setting the default for.

How do I save a custom colormap in Matlab?

myCustomColormap = colormap(gca) save(‘myCustomColormap’,’myCustomColormap’); If you want to make the colormap generally available to all your functions, no matter where, add it to your Matlab search path.

How do I set the default colormap in MATLAB?

How do you use colormap in octave?

The default colormap is returned. The map may also be specified by a string, map_name , which is the name of a function that returns a colormap. If the first argument hax is an axes handle, then the colormap for the parent figure of hax is queried or set….Navigation.

Is Jet A good colormap?

There was a consensus among the data visualization purists that the rainbow color map, and it’s close cousin Jet are bad. These colormaps used to be popular at the beginning of the computational data visualization era. However, their popularity decreased in the last five years or so.

How do you read a colormap?

The format of the colormap is that each row contains three elements (red, green, blue) and the lower color limit is mapped to the first entry, the upper color limit is mapped to the last and data is mapped linearly to all colors that may appear in between the two.
