How do you reset a duct detector?
− The detector must be reset by the system control panel, front cover Test/Reset button, or remote accessory. − To reset using the Test/Reset button on the power board cover simply press and release. test, or the detector will not function properly.
How do you test a smoke detector with a magnet?
Magnet Test vs Smoke Test The magnet only closes a magnetic reed switch in the electronics. This switch mimics the signal that indicates that the smoke chamber detects smoke. However, the magnet does not test whether or not the smoke chamber can detect any smoke. The smoke detector looks for particles in the air.

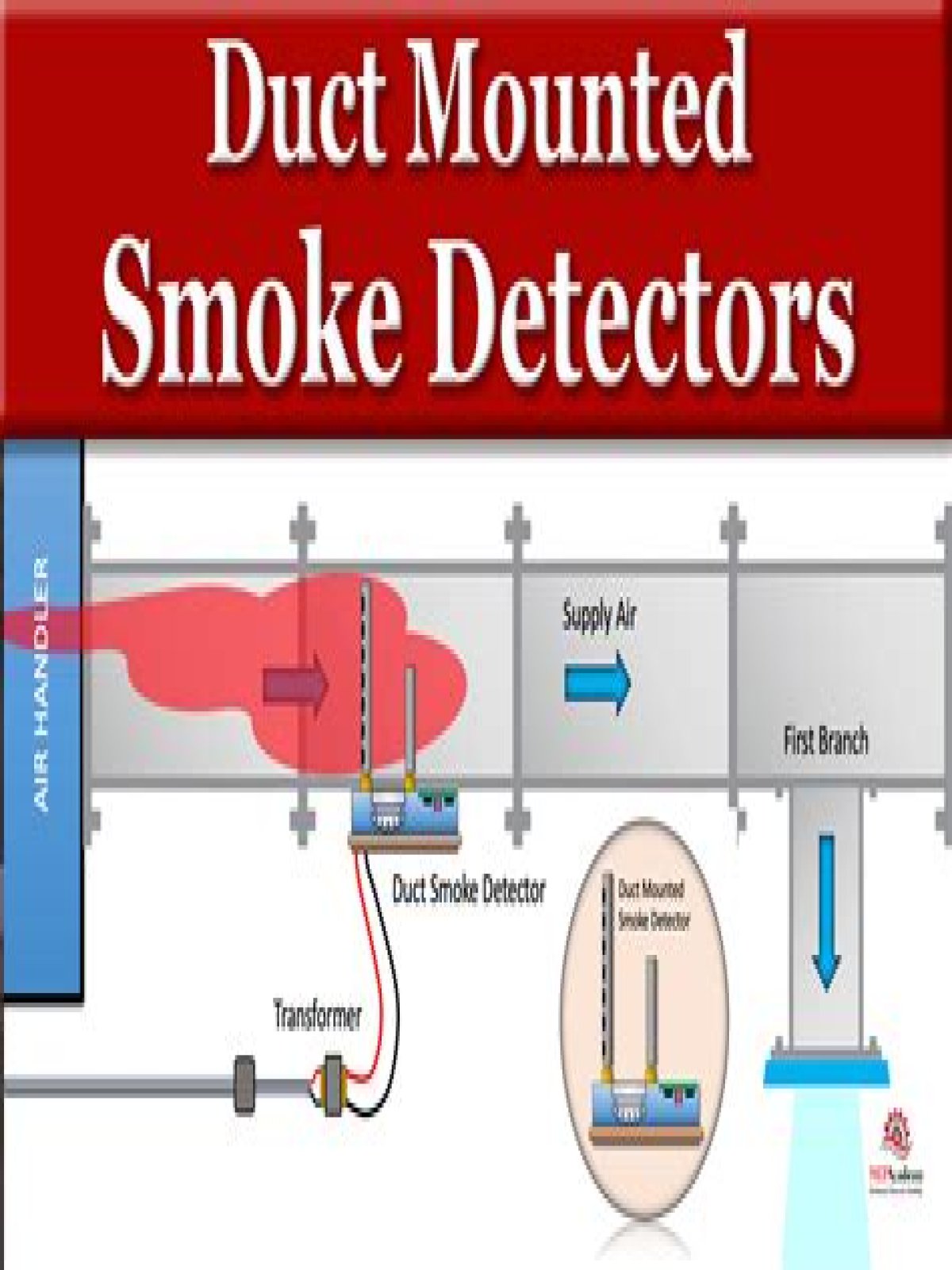

Where do you put a duct smoke detector?
Duct smoke detectors should be located in the hvac area between 6 and 10 duct-equivalent diameters of straight, uninterrupted run. The International Mechanical Code section, 606.2.
How do you reset a smoke detector when its off?
Resetting the Alarm
- Turn off the power to the smoke alarm at the circuit breaker.
- Remove the smoke alarm from the mounting bracket and disconnect the power.
- Remove the battery.
- Press and hold the test button for at least 15 seconds.
- Reconnect the power and reinstall the battery.
Do smoke detectors need to be reset?
You do not need to remove the alarm from the ceiling. Resetting your smoke alarms is an important step in your project. If you want to make sure your smoke alarms are going to work right when/if there is a fire then you want to make sure they are reset to go off when needed!
Where is the reset button on a hard wired smoke detector?
On the bottom of the smoke alarm is a reset button, press it! 3. Keep the reset button held for 30 seconds to reset it and make it stop chirping.
What does it mean when smoke detector blinks red?
Smoke alarms will make a ‘beep’ or ‘chirping’ sound when they have a low battery or are faulty. All smoke Alarms also have a red light that flashes momentarily every 40-60 seconds to visually indicate they are operating. This same red light flashes continuously when the Smoke Alarm has been activated.
What is the difference between smoke detector and duct detector?
NFPA 72 also states that a duct smoke detector is not allowed to replace an area smoke detector, mainly because if the air-handling unit (AHU) is not running, the detector would not detect smoke. Therefore, duct smoke detectors are typically considered mechanical equipment devices instead of life safety devices.
